Breathalyzer Dräger Alcotest 7510

Stationary breathalyzer BACscan F-3

Name: Stationary breathalyzer BACscan F-3
Brand: BACscan
Price: 2398.00 PLN
Availability: InStock
Rating: 5 (1 reviews)

Stationary breathalyzer BACscan F-3

Based on 1 reviews. | Write a review

2,398.00 zł

Ex Tax: 1,949.59 zł

Stock: In Stock
Model: AL-BSC-F3
EAN: 5907437062487
Weight: 5.40kg
Dimensions: 37.00cm x 28.00cm x 10.00cm

BACscan

Available Options

Activating mechanism

Qty

Add to Cart

Buy Now Ask

Add to Wish List Compare this Product

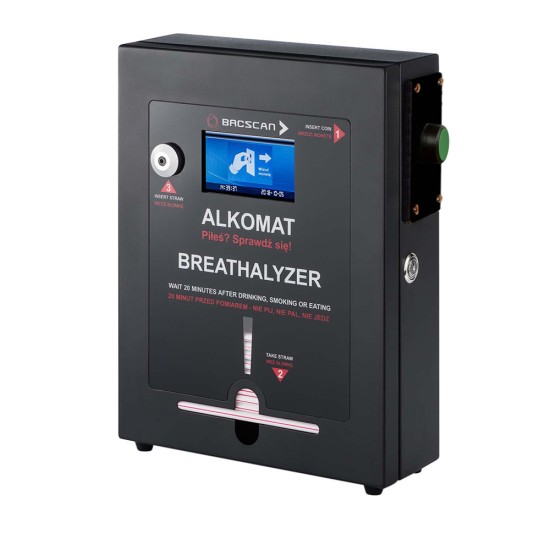

Model F3 is a modern stationary breathalyzer with an illuminated TFT-LCD touch panel, designed for use in public places, such as bars, gas stations, workplaces, hotels.

It has been equipped with an advanced, modular electrochemical sensor that guarantees precise and repeatable results for the entire measuring range. It has the ability to choose one of the 3 activation mechanisms*: coin, switch, coin + switch.

The measurement results are displayed in the range up to 4.00 ‰, with a resolution of up to two decimal places. All messages are displayed in Polish, making the measurement very simple and takes little time. The air inlet system is designed to protect the sensor from damage by an air sample contaminated with saliva, liquid or solids.

F3 is equipped with a counter of the measurements taken, a real-time clock, a system of pneumatic feeding of a specific air sample to the sensor and an alarm signaling that the permissible alcohol level in exhaled air is exceeded in Poland. The device can be started by inserting a coin or pressing a button. These settings are predefined in the website. The user can independently set the type of coins to activate the breathalyzer and replace the sensor.

The device is powered by a 12V DC 3.5A mains adapter. Modern design, relatively small dimensions and a reinforced metal casing make the breathalyzer a perfect match for any type of interior.

APPLICATION
BACscan® F3 is intended for use in public places such as bars, restaurants, workplaces, businesses, gas stations, hotels, airports etc.

ADVANTAGES

Backlit, touch screen TFT-LCD 4.3 "
New generation modular electrochemical sensor
Pneumatic system for feeding a precisely defined sample to the sensor and a built-in air flow sensor
Display resolution to two decimal places
Can be mounted on a wall or as a free-standing unit
Optical and acoustic signaling in case of exceeding the alarm threshold
Simple operation and messages in Polish
Possibility to define measurement units and alarm threshold according to user requirements
A coin mechanism with the option to set the coins to activate the device
The ability to change the activation mechanism: coin, switch, coin + switch*
Powder coated metal casing resistant to wear
12-month warranty

* default mechanism: coin. Changing the default mechanism requires service intervention and is additionally payable.

Product information
Sensor type	New generation electrochemical, modular
Measurement range	0.00 - 4.00 ‰
Measurement units	‰ (promill), % BAC, mg/L * Possibility to change the measuring unit by the service. Factory setting: ‰
Display resolution	0.01 ‰
Accuracy of indications	± 0.05 ‰ for 1.00 ‰ at 25°C * For a correctly calibrated device.
Alarm threshold	0.20 ‰ (changeable) * The alarm threshold can be changed by the service. Factory setting: 0.20‰
Time to prepare for work	~ 20 seconds * Time to prepare the device for the first measurement.
Sampling time	~ 4 seconds
Measurement modes	Automatic
Activating mechanism	One of the 3 activation mechanisms: coin, switch, coin + switch * Default: 1, 2 or 5 PLN coin ** Changing the mechanism requires service intervention and is additionally payable.
Coin / Token	Thickness: 1.2 - 3.0 mm; diameter: 18-31 mm
Cooperation with application	No
Cooperation with printer	No
Display	Touch, backlit TFT-LCD panel 4.3 "
Housing	Metal, powder coated
Mounting method	Freestanding or wall mounted
Usage	Large companies, small and medium-sized companies, commercial
Additionally included	User manual Warranty card Keys Mouthpieces - 250 pcs. Power adapter
Power
Power source	220-240V AC 50/60HZ / AC adapter 12V DC 3.5A
Working and storage conditions
Working conditions	Temperature: 0 ~ 40°C Humidity: up to 95% RH
Storage conditions	Temperature: 0 ~ 50°C Humidity: up to 95% RH
Quality and safety
Certificates and approvals	CE mark
Recommended calibration	Every 12 months or 1000 measurements (whichever comes first)
Free calibration	No
Warranty	12 months
